⛓ Control Without Contact

PSC LoadGuider® Anti-Tangle Tagline is a purpose-engineered, high-visibility hand safety tool designed to control suspended loads without direct hand contact during crane and lifting operations. It allows operators to guide, stabilise, and position loads from a safe distance—keeping hands and bodies out of pinch points, crush zones, and the line of fire.

PSC Anti-Tangle Tangline— Hand Safety Tool

DESIGN & CONSTRUCTION

⚙ Engineered to Stay Straight

Rigid Inner Core
Stops rope collapse & rotation

Helix Spiral Cover
Improves grip • Resists tangling

Knot-Free Surface
No snag points • Reduced pinch risk

High-Strength Fiber
SK75 / Dynex® • Lightweight

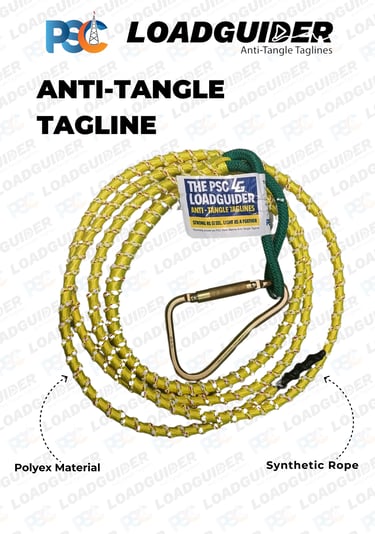

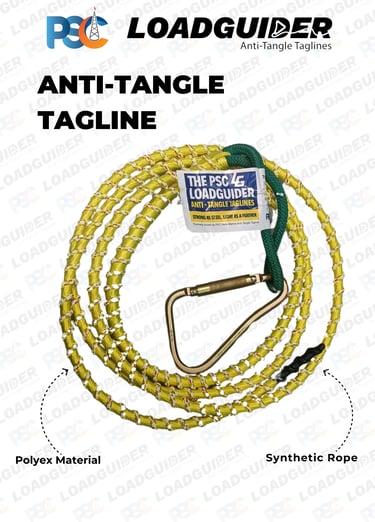

PSC LoadGuider® Anti-Tangle Tagline is engineered using a rigid internal Polyex core combined with a stiff Helix spiral braided outer cover. This construction prevents the tagline from collapsing, twisting, or wrapping during lifting operations.

The knot-free, smooth surface eliminates raised areas that can catch on pinch points, sharp edges, or surrounding structures—ensuring stable, predictable behaviour throughout the lift.

Key Construction Benefits

➤ Resists twisting, tangling, and uncontrolled coiling
➤ Does not form knots or loops under load
➤ Maintains shape during use and storage
➤ Eliminates snag points and pinch-point catching
➤ Supports true hands-free lifting practices

KEY FEATURES & BENEFITS

🧩 Every Detail Solves a Risk

✔ Abrasion-Resistant Braiding
Extended service life in harsh industrial environments

✔ High-Visibility Yellow
Maintains visibility in low-light, dusty, and congested areas

✔ Colour-Coded Eyes
Quick and accurate length identification

✔ Anti-Tangle Performance
No twisting, wrapping, knotting, or rope memory

✔ Hands-Free Load Control
Operators remain outside danger zones

✔ Lightweight, High Strength
Rigid Polyex core with durable over-braided cover

APPLICATIONS

🏗 Where Safety Meets control

• Cranes & Forklifts – suspended load guidance

• Hands-Free Lifting Operations

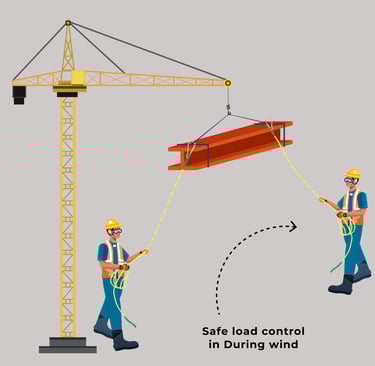

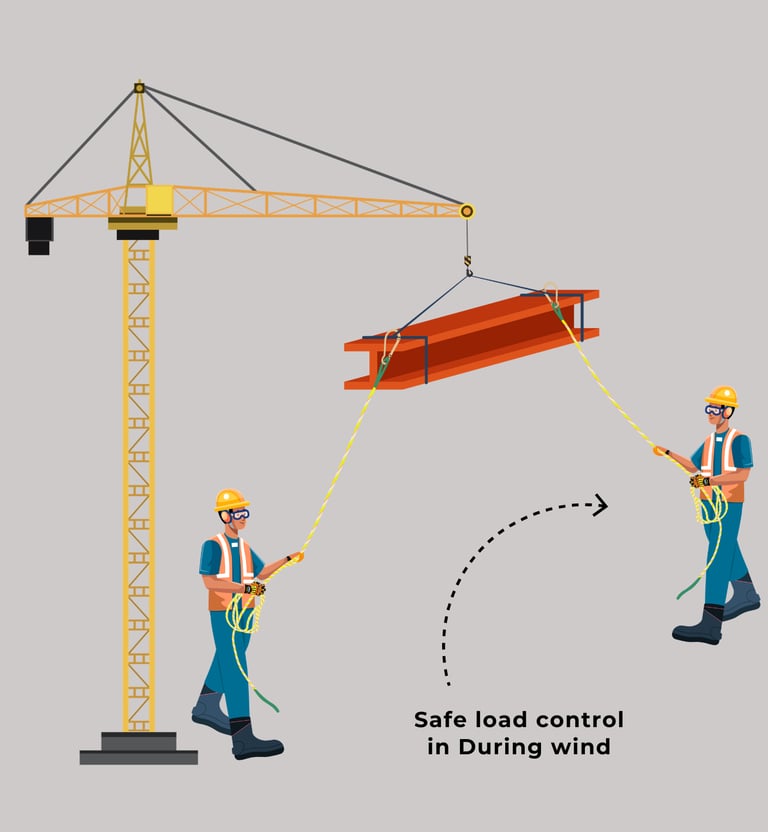

• Windy Conditions – stabilizes swinging loads

• Precision Load Positioning

TECHNICAL SPECIFICATIONS

📐 Built for Industrial Performance

➤ Core Material: Polyex fibre (6 mm internal core)
➤ Outer Diameter: Approx. 18 mm (12 mm cover + core)
➤ Construction: Rigid core + stiff Helix braided cover
➤ Surface: Smooth, knot-free, snag-resistant
➤ Colour: High-visibility yellow
➤ Maintenance: Dirt-repellent and washable
➤ Country of Manufacture: Iceland
➤ Technical Cooperation: Developed with input from a major drilling operator

AVAILABLE LENGTHS & PART NUMBERS

10 ft | PSC-LGTC-10
15 ft | PSC-LGTC-15
20 ft | PSC-LGTC-20
25 ft | PSC-LGTC-25
30 ft | PSC-LGTC-30
35 ft | PSC-LGTC-35
40 ft | PSC-LGTC-40
45 ft | PSC-LGTC-45

Why Choose PSC LoadGuider® Anti-Tangle Tagline—Hand safety tool

• Reduces hand-guiding risks during lifting

• Eliminates common tagline tangling problems

• Improves load control and site efficiency

• Designed for industrial and heavy-duty environments

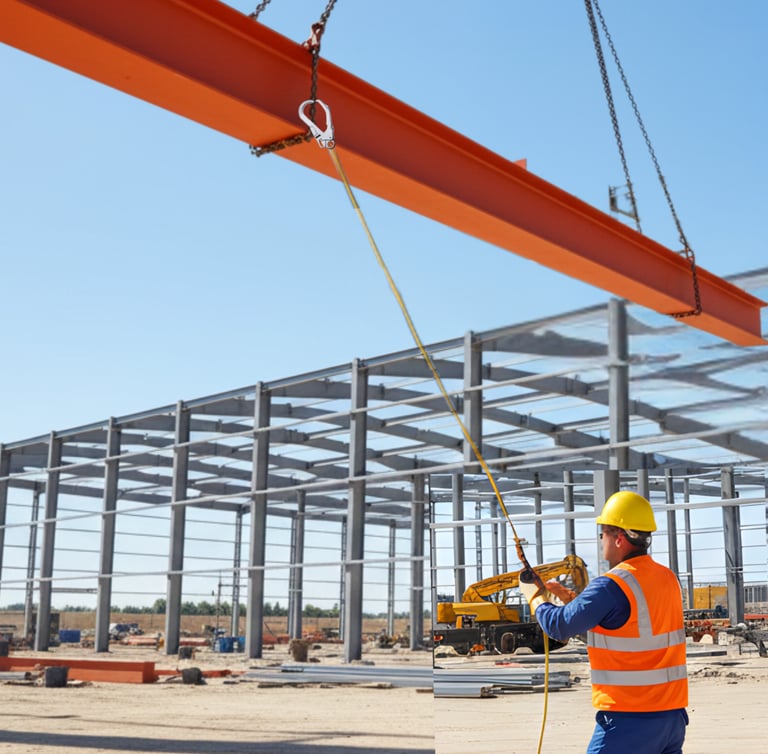

Application Images
